Graphene & Graphene Oxide

Pimata offers graphene oxide and graphene products in different formulations that are designed to be customized for every kind of use.

View the product line →Request Samples

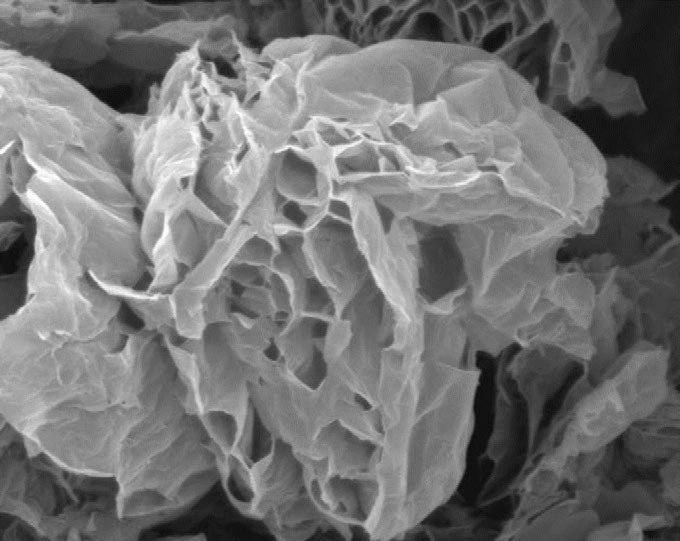

SEM image of ULTRA Graphene
SEM · ULTRA Graphene, bulk powder
What makes it different

Truly Single Layer

Experiments show that commercial graphene products are technically few to multilayered graphene platelets produced from the exfoliation of expanded graphite.

As such, those products have limited surface area which is a critical parameter for most applications. Without the large surface area, graphene loses most of its properties and behaves just like graphite. Using proprietary methods, Pimata has developed a unique process for producing graphene that is truly single layer in nature.

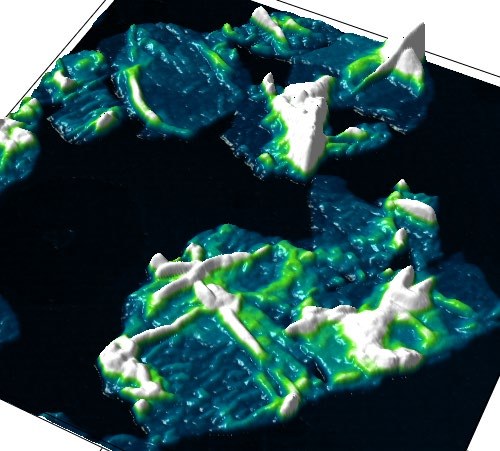

AFM 3D image of ULTRA Graphene
AFM · ULTRA Graphene

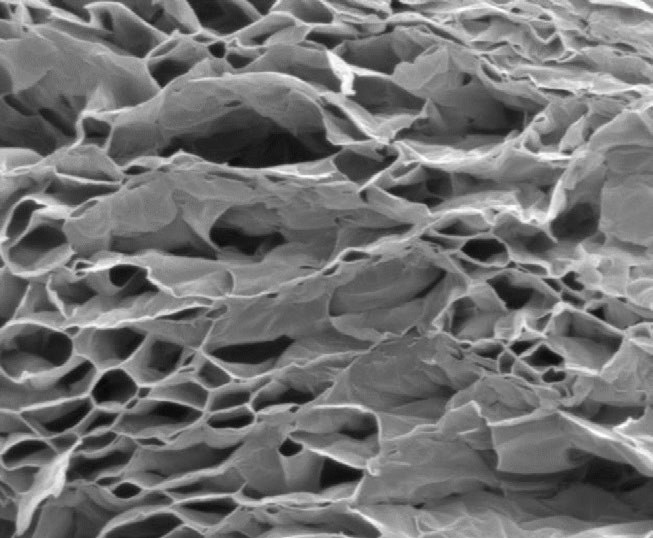

SEM of PREMIUM Graphene foam-like structure
SEM · PREMIUM Graphene

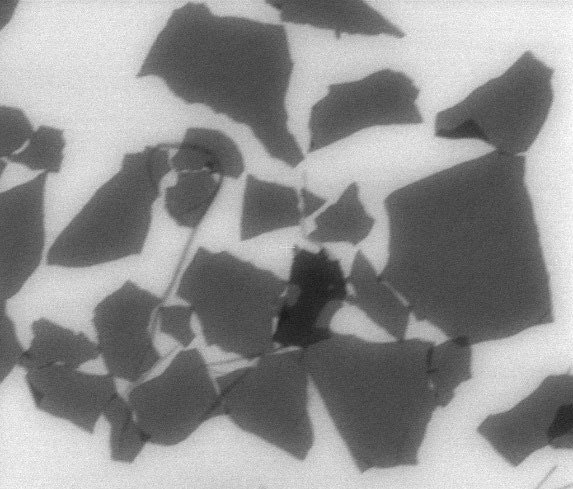

SEM of PRIME Graphene Oxide nanosheets
SEM · PRIME GO nanosheets
94.9%
Supreme Graphene Oxide

Single atomic layers ≈ 94.9%

>950 m²/g
Ultra Graphene

High accessible surface area — measured by BET (nitrogen)

>3000 S/m
Ultra Graphene

High conductivity

~0.002 g/cm³
Ultra Graphene

Ultralow bulk density, making the material as light as air

The two families

Graphene Oxide & Graphene

Hydrophilic · Water-dispersible

Graphene Oxide (GO)

The chemical approach shows greater potential for large scale manufacturing due to the facile functionalization of graphene oxide and its excellent dispersibility in water.

Pimata offers monolayer graphene oxide in manufacturing quantities for mainstream commercial applications.

Reduced graphene oxide · Conductive

Graphene

Since graphene is hardly dispersible in any solvent medium, it is often used in its oxygenated form, the so-called graphene oxide (GO).

PREMIUM Graphene (derived from the reduction of GO), still carries some oxygen-containing functionalities, which allows the dispersion of its sheets in a variety of polar solvents.

Product line

Products

Two graphene oxides and two graphenes — each with a full technical spec sheet available for download.

Graphene Oxide

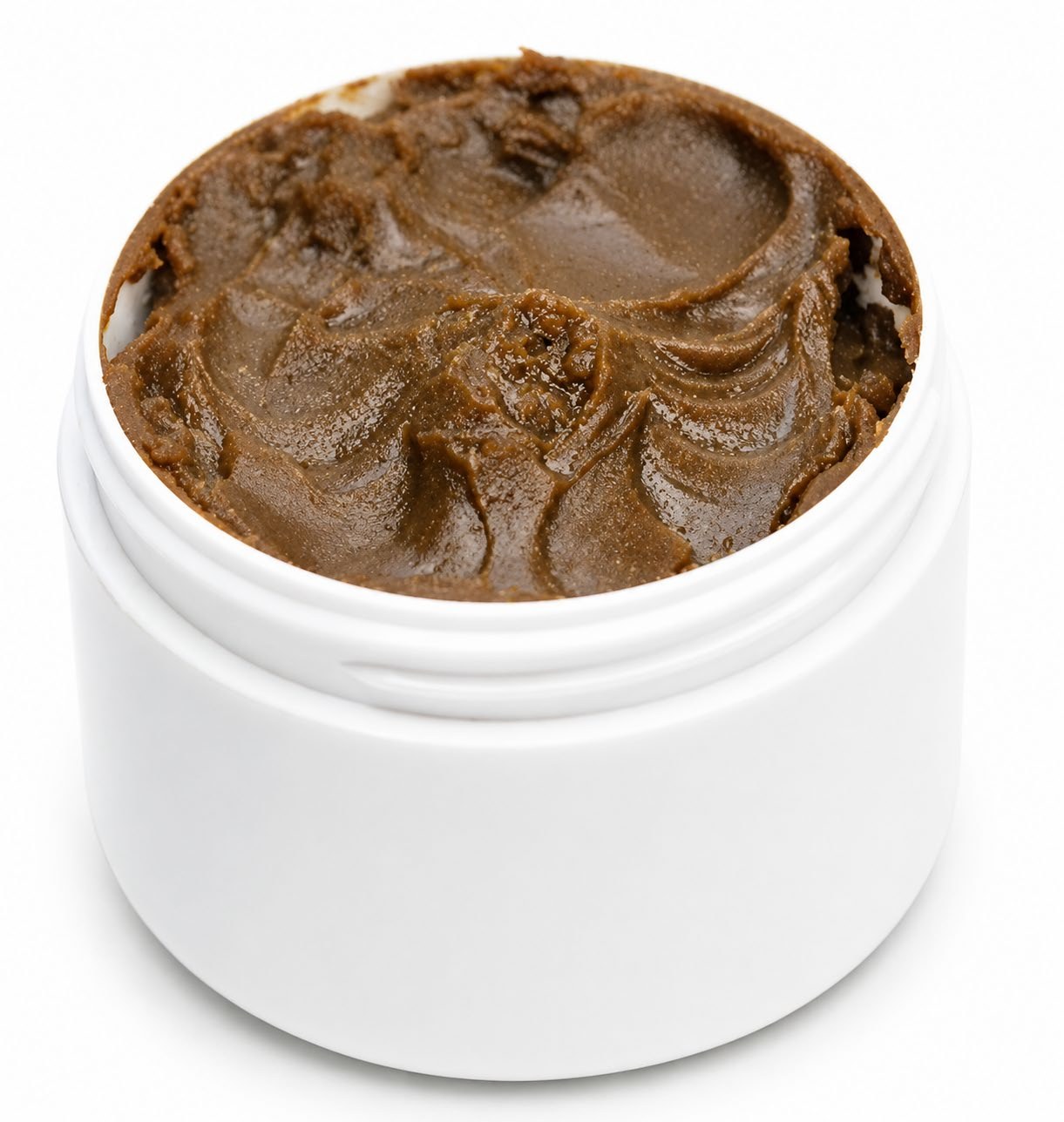

PRIME Graphene Oxide pasteItem 901500
Graphene Oxide · Paste

Prime Graphene Oxide

Optimized for concrete, composites, and industrial formulations.

Form / Color
Paste · Brown
Solid content
5–10% (w/w) in water
Carbon / Oxygen (XPS)
69.2 / 27.6 at%
Single atomic layers
≈ 91.5%
Lateral size D50
0.77 µm
Download spec sheet (PDF) →

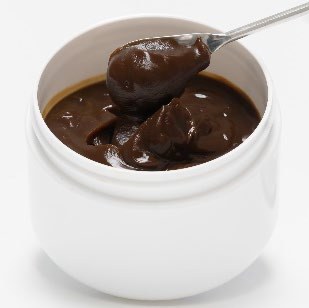

SUPREME Graphene Oxide pasteDispersion · Paste · Powder
Graphene Oxide · 3 forms

Supreme Graphene Oxide

Enhanced performance and dispersion characteristics.

Forms
Dispersion · Paste · Powder
Solid content
0.01–0.5% / 7–11.5% (w/w)
Carbon / Oxygen (XPS)
70.8 / 27.8 at%
Single atomic layers
≈ 94.9%
Lateral size D50
0.9 µm
Download spec sheet (PDF) →
Graphene

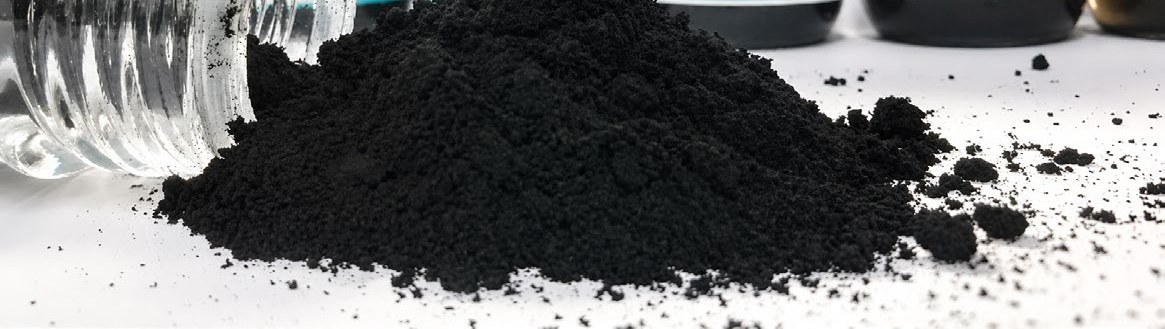

PREMIUM Graphene powderItem 902150
Reduced Graphene Oxide · Powder

Premium Graphene

High surface area conductive graphene.

Form / Color
Fluffy powder · Black
Carbon / Oxygen (XPS)
85–91 / 8–15 at%
Surface area (BET)
700 ± 50 m²/g
Electrical conductivity
80 ± 20 S/m
Tapped density
0.002–0.005 g/cm³
Download spec sheet (PDF) →

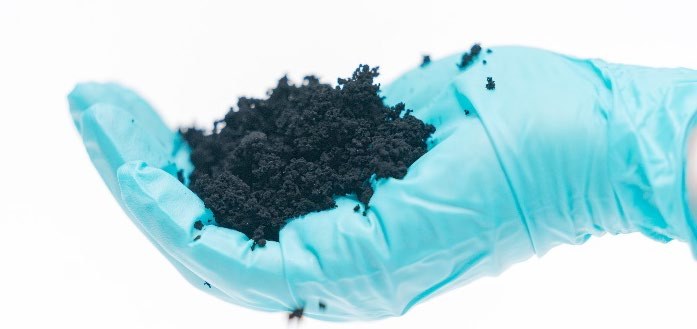

ULTRA Graphene powder in a gloved handItem 902160
Reduced Graphene Oxide · Powder

Ultra Graphene

Highest conductivity and lowest oxygen content. Best suited for batteries and electronics.

Form / Color
Fluffy powder · Black
Carbon / Oxygen (XPS)
96.5 / 3.1 at%
Surface area (BET)
951 ± 64 m²/g
Electrical conductivity
3500 ± 500 S/m
Tapped density
0.0015–0.0030 g/cm³
Download spec sheet (PDF) →
At a glance

Compare Specifications

Prime GOSupreme GOPremium GrapheneUltra Graphene
TypeGraphene oxideGraphene oxideReduced graphene oxideReduced graphene oxide
FormPasteDispersion, paste, powderFluffy powderFluffy powder
Carbon content (XPS)69.2 at%70.8 at%85–91 at%96.5 at%
Oxygen content (XPS)27.6 at%27.8 at%8–15 at%3.1 at%
Single atomic layers≈ 91.5%≈ 94.9%——
Surface area (BET N₂)——700 ± 50 m²/g951 ± 64 m²/g
Electrical conductivity——80 ± 20 S/m3500 ± 500 S/m
Dispersible inWaterWater, ethanol, isopropanol, NMP, DMF, ethylene glycolEthylene glycol, ethanol, IPA, chloroform, DMF, NMP, THF, dichlorobenzeneEthylene glycol, IPA, ethyl acetate, chloroform, DMF, NMP, THF, dichlorobenzene
Spec sheetPDF ↓PDF ↓PDF ↓PDF ↓

Disclaimer: The information claimed is believed to be accurate. Pimata holds no guarantee to the accuracy of data and no liability in connection with damages when using the product.

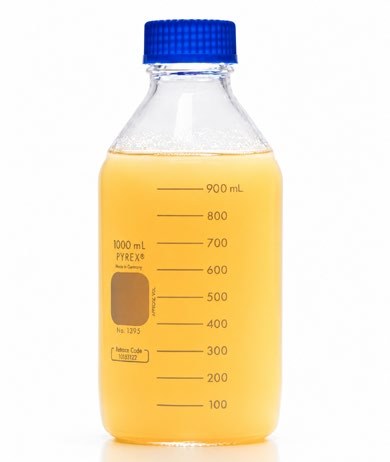

Graphene oxide dispersion, light

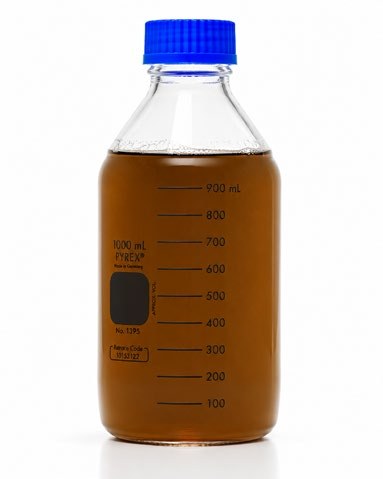

Graphene oxide dispersion, dark
Custom Dispersions

Graphene Oxide Customized to Your Needs

Pimata offers graphene oxide in different formulations that are designed to be customized for every kind of use. We can also provide graphene oxide in the powder form, paste or as dispersions. Additional parameters we can precisely control are:

  • Sheet size
  • Concentration of GO in the dispersion
  • Solution pH
  • The type of solvent used for making the dispersion
  • Purity level as a function of the pH or the ionic conductivity of the GO solution

Tell us your specs and we will customize the GO for your application.
